These
aluminum cam-locks are manufactured from aluminum alloy 384 (JIS grade
ADS12) and feature type 316 stainless pins, forged brass handles, and
plated steel finger rings. G65 couplings fit MIL SPEC 27487 in sizes up
to 6" and will interchange with other couplings that meet this
specification. Female couplers are supplied with locking clips.
Note: Cam-Locks should not be used with compressed air or other compressed gases.
Aluminum Working Pressures
1" to 2"
250 PSI
2.5" to 4"
150 PSI
5" to 6"
75 PSI
Standard gaskets are rated to 105°C (221°F)

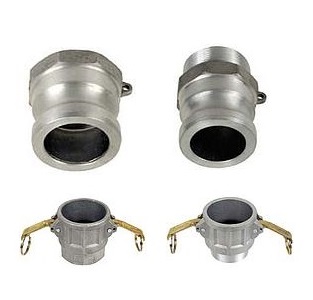

Specifications for
Camlock x Threaded Adapter
Hardware Configuration
38mm (1.5") Cam Female x 38mm (1.5") Female NPT
or
38mm (1.5") Cam Female x 38mm (1.5") Male NPT
or
38mm (1.5") Cam Male x 38mm (1.5") Male NPT
or
38mm (1.5") Cam Male x 38mm (1.5") Female NPT
or
50mm (2") Cam Female x 50mm (2") Female NPT
or
50mm (2") Cam Female x 50mm (2") Male NPT
or
50mm (2") Cam Male x 50mm (2") Male NPT
or
50mm (2") Cam Male x 50mm (2") Female NPT
or
65mm (2.5") Cam Female x 65mm (2.5") Female NPT
or
65mm (2.5") Cam Female x 65mm (2.5") Male NPT
or
65mm (2.5") Cam Male x 65mm (2.5") Male NPT
or
65mm (2.5") Cam Male x 65mm (2.5") Female NPT
or
77mm (3") Cam Female x 77mm (3") Female NPT
or
77mm (3") Cam Female x 77mm (3") Male NPT
or
77mm (3") Cam Male x 77mm (3") Male NPT
or
77mm (3") Cam Male x 77mm (3") Female NPT
or
100mm (4") Cam Female x 100mm (4") Female NPT
or
100mm (4") Cam Female x 100mm (4") Male NPT
or
100mm (4") Cam Male x 100mm (4") Male NPT
or
100mm (4") Cam Male x 100mm (4") Female NPT
or
125mm (5") Cam Female x 125mm (5") Male NPT
or
150mm (6") Cam Female x 150mm (6") Female NPT
or
150mm (6") Cam Female x 150mm (6") Male NPT
or
150mm (6") Cam Male x 150mm (6") Male NPT
or
150mm (6") Cam Male x 150mm (6") Female NPT
