The CL Series lineup features Command Light’s largest light towers for sale with a reach up to 11’ from its base. These units are designed for large apparatus and are manufactured using aircraft-grade aluminum alloy to reduce weight while adding strength, making them the strongest mobile light towers on the market. These towers can rotate 360 degrees and tilt, raise and lower with ease to mitigate shadows in all types of situations. Unlike truck-mounted perimeter LEDs, this gives crews the ability to direct all of the usable light. These towers can even be angled to overhang the vehicle to provide operable light near the side of the apparatus.
The CL Series is predominately an LED light tower; however, quartz halogen bulbs are available in the six-head configuration.
8-head, 6-head, or 4-head configurations are available.
Configure your tower with the number of light heads, tower height, power source and light fixture with the Command Light Configurator.
Specifications

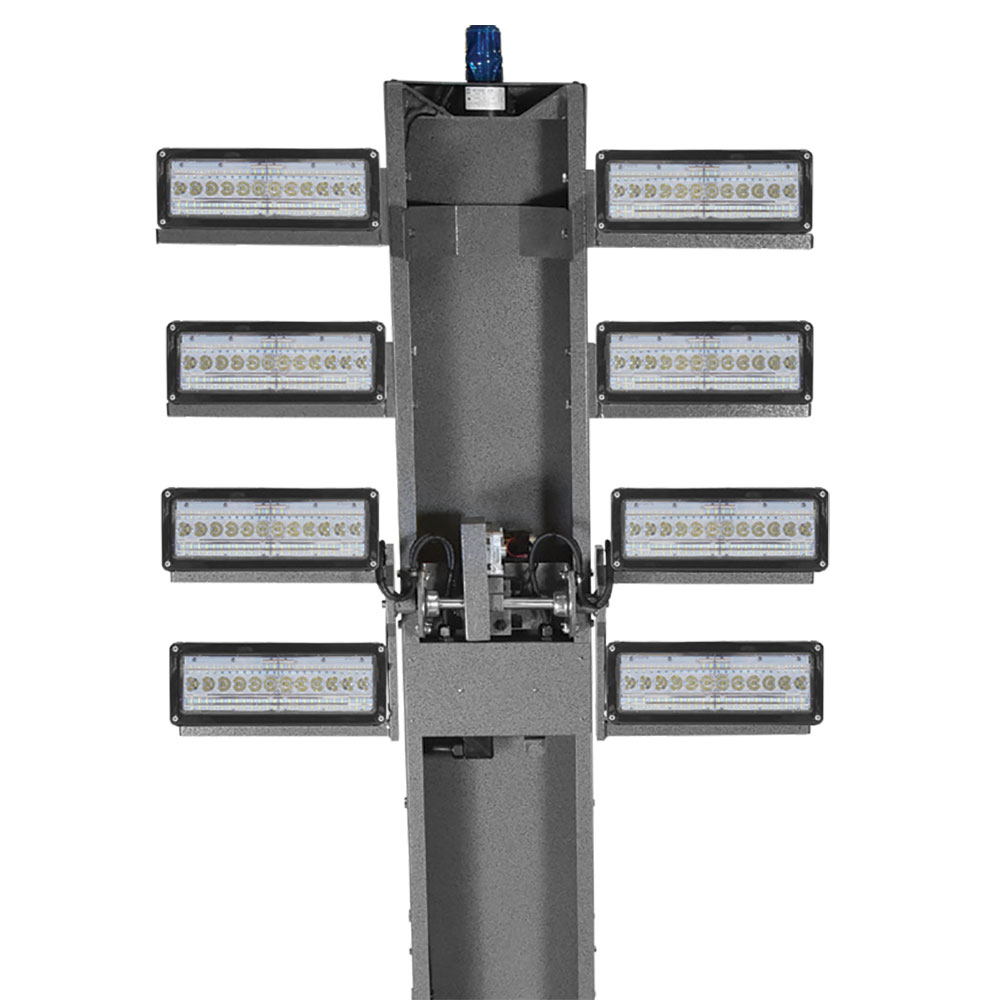

8 Head - LED
AC | Lighting | Power Requirements | Output per light (lumens) | Total Output (lumens) | Dimensions (Nested) | Dimensions (Upright) | Weight |
 | FireTech Helios 60W | 115V or 230V AC 780W | 14,000 | 112,000 | 12"h x 74"w x 38"d (30.5cm x 1.9m x 97cm) | 131"h x 79"w x 38"d (3.3m x 2m x 0.9m) | 325 lbs (147 kg) |
 | FRC Spectra Max 335W | 115V or 230V AC 2,980W | 28,000 | 224,000 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 325 lbs (147 kg) |
 | Whelen Pioneer Plus PFP4 300W | 115V or 230V AC 2,700W | 40,884 | 327,072 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 325 lbs (147 kg) |
Available Options: Backlight, Strobe, Camera, Controls, Colour
6 Head - LED
AC | Lighting | Power Requirements | Output per light (lumens) | Total Output (lumens) | Dimensions (Nested) | Dimensions (Upright) | Weight |
 | (6) FireTech SL-X-15 185W | 115V or 230V AC 1,540W | 28,000 | 168,000 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 325 lbs (147 kg) |
 | FRC Spectra 220W | 115V or 230V AC 1,620W | 20,000 | 120,000 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 305 lbs (139 kg) |
| FRC Spectra Max 335W | 115V or 230V AC 2,310W | 28,000 | 168,000 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 305 lbs (139 kg) |
 | Whelen Pioneer Plus PFP2 150W | 115V or 230V AC 1,200W | 20,442 | 122,652 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 305 lbs (139 kg) |
| Whelen Pioneer Plus PFP4 300W | 115V or 230V AC 2,100W | 40,884 | 245,304 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 305 lbs (139 kg) |
Available Options: Backlight, Strobe, Camera, Controls, Colour

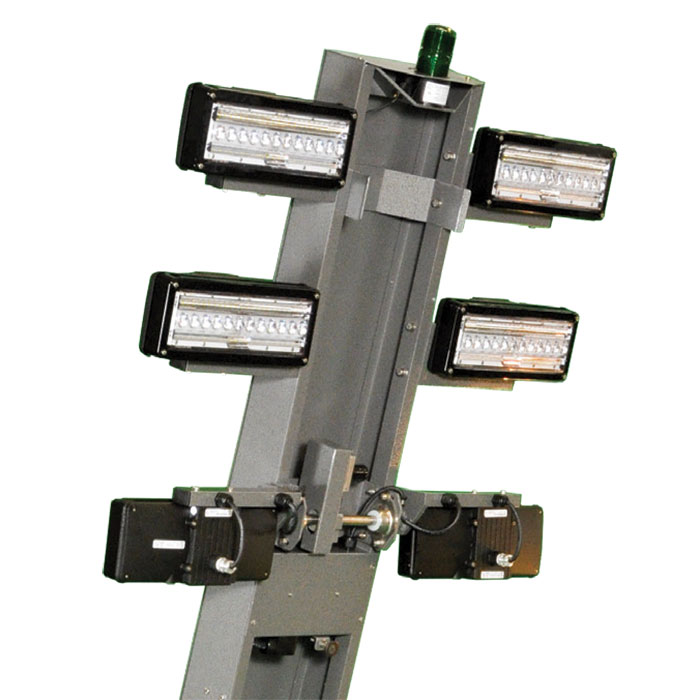

6 Head - Quartz Halogen
AC | Lighting | Power Requirements | Output per light (lumens) | Total Output (lumens) | Dimensions (Nested) | Dimensions (Upright) | Weight |
 | FRC Focus 750W | 115V or 230V AC 4,800W | 19,600 | 117,600 | 12"h x 74"w x 41"d (30.5cm x 1.9m x 1m) | 131"h x 79"w x 41"d (3.3m x 2m x 1m) | 305 lbs (139 kg) |
 | FRC Focus 1,000W | 230V AC 6,300W | 22,000 | 132,000 | 12"h x 74"w x 46"d (30.5cm x 1.9m x 1.2m) | 131"h x 79"w x 46"d (3.3m x 2m x 1.2m) | 305 lbs (139 kg) |
 | FRC Focus 1,500W | 230V AC 9,300W | 35,000 | 210,000 | 12"h x 74"w x 46"d (30.5cm x 1.9m x 1.2m) | 131"h x 79"w x 46"d (3.3m x 2m x 1.2m) | 305 lbs (139 kg) |
Available Options: Backlight, Strobe, Camera, Controls, Colour

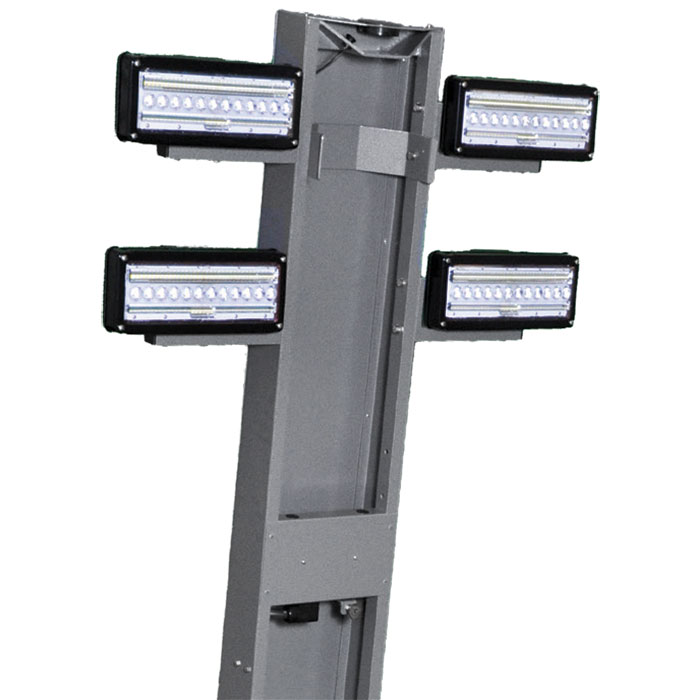

4 Head - LED
DC | Lighting | Power Requirements | Output per light (lumens) | Total Output (lumens) | Dimensions (Nested) | Dimensions (Upright) | Weight |
 | (4) FireTech SL-X-15 185W | 12V DC - 87 amps 1,040W | 28,000 | 112,000 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 325 lbs (147 kg) |
 | FRC Spectra 220W | 12V DC - 98 amps 1,180W | 20,000 | 80,000 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 305 lbs (139 kg) |
 | FRC Spectra Max 230W | 12V DC - 100 amps 1,220W | 28,000 | 112,000 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 305 lbs (139 kg) |
 | Whelen Pioneer Plus PFH2 150W | 12V DC - 75 amps 900W | 20,261 | 81,044 | 12"h x 74"w x 43"d (30.5cm x 1.9m x 1.1m) | 131"h x 79"w x 43"d (3.3m x 2m x 1.1m) | 305 lbs (139 kg) |
Available Options: Backlight, Strobe, Camera, Controls, Colour
Optional Upgrades
Command Light offers a number of options to maximize the versatility of our light towers. These options are available on select models, so please note your favorite options icons and look for them throughout the website to designate models that can be upgraded with these features. Create the ultimate tower truck with these optional light tower upgrades.
Backlight
The backlight option enables the bottom row of lamp heads to rotate 180 degrees, making it possible to light opposing scenes.
Top-Mounted Strobe
Alert oncoming traffic earlier with a strobe mounted on top of the light tower. Available in amber, blue, clear, green or red illumination.
Control Options
Every Command Light is equipped with a Standard Controller with 15 ft. (4.5 m) umbilical cord. Add a wireless remote, panel-mounted controller or multiplex display capabilities.
Top Mounted Camera
A top-mounted 360 vehicle camera provides additional views for apparatus operators, helping keep personnel safe on the fire ground. Choose from three different available camera systems.
Custom Tower Colours
Every Command Light is powder coated in standard gray, but departments can upgrade to powder-coated black or white. We can also color match your truck with wet paint, like red.
