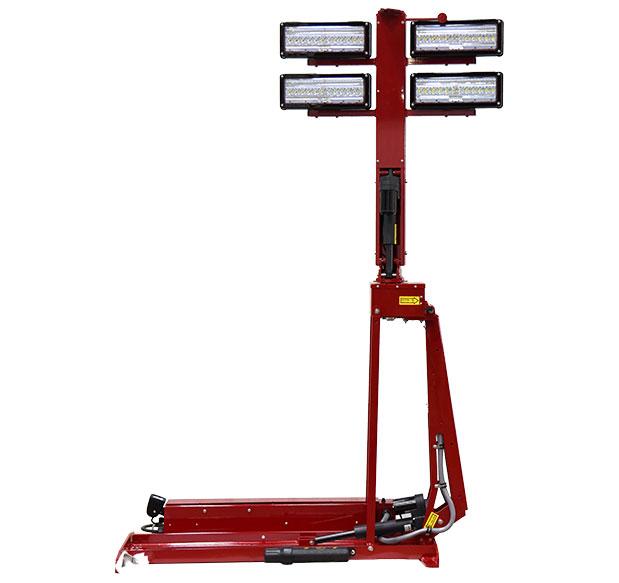

Command Light KL Series: Mid-Size Unit

Looking for a mid-size light tower? The Knight Series delivers a reach of nearly 7.5’ from its base. These towers are manufactured using aircraft-grade aluminum for lightweight strength, while their mid-size footprint makes them ideal for apparatus with limited space, making them a favorite among mobile lighting towers. The Knight Light can rotate 360 degrees and tilt, raise and lower with ease to direct scene lighting. Unlike truck-mounted perimeter LEDs, this gives crews the ability to elevate all of the usable light.

The KL Series is predominately an LED light tower; however, quartz halogen bulbs are available in the six-head configuration.

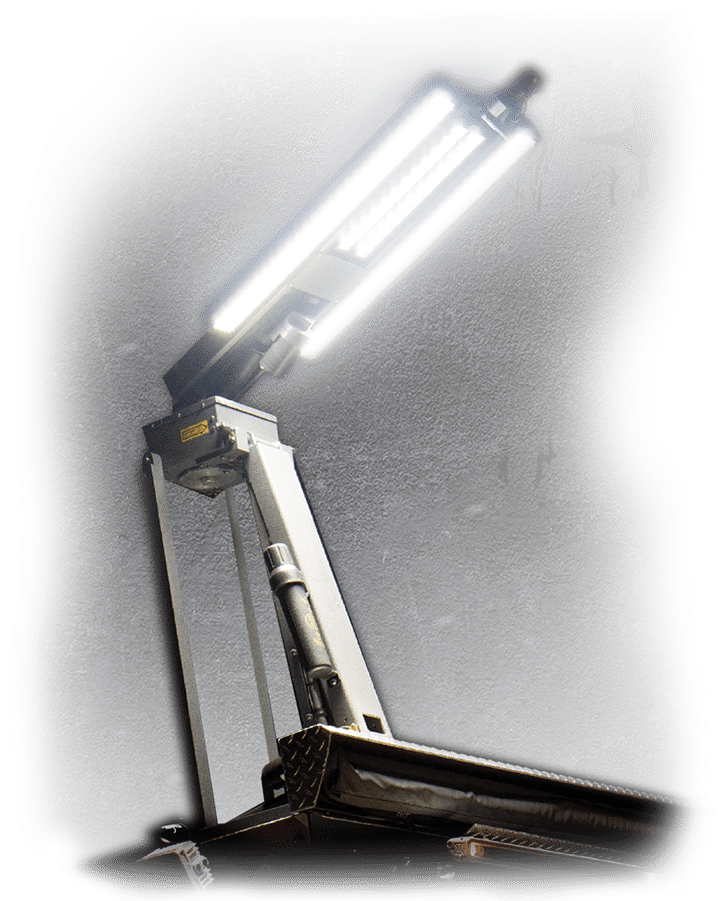

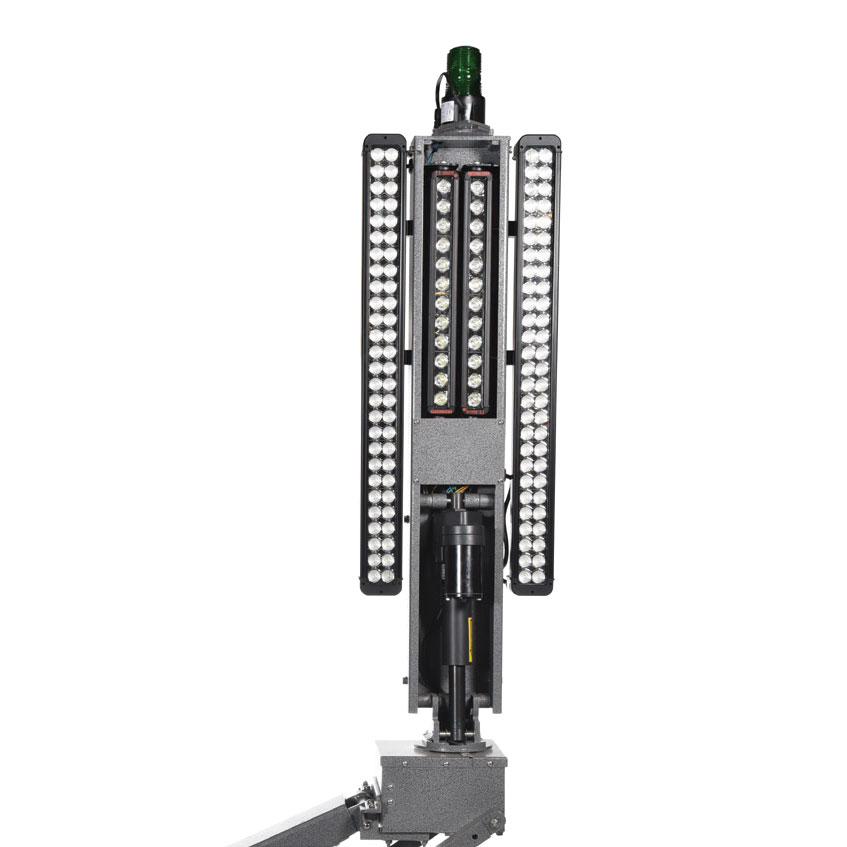

The KL Series also includes the Knight Slim, Command Light’s narrowest design. This light tower stows flat at just 12” x 13” x 53”, making it perfect for tight dunnage areas or high-side aerial compartments. This compact tower packs a total output of 70,000 lumens thanks to FireTech fixtures.

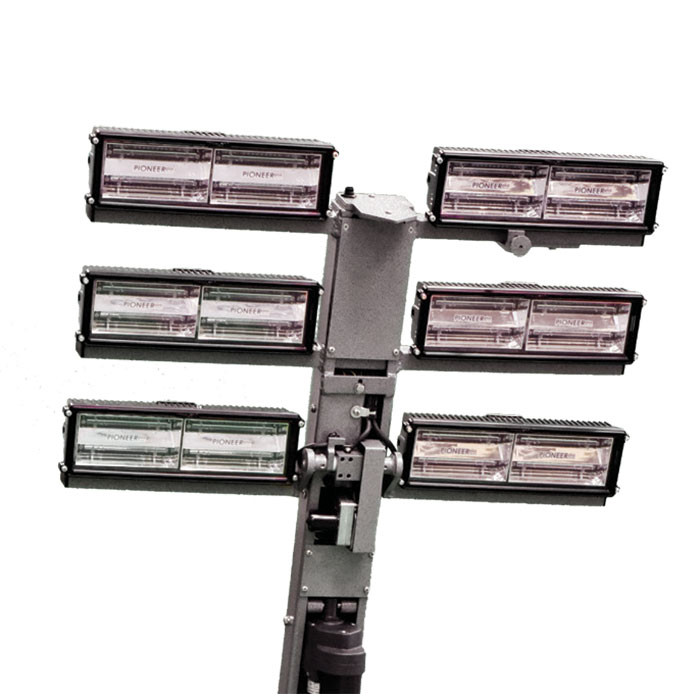

6-head, 4-head, or Knight Slim configurations are available.

Configure your tower with the number of light heads, tower height, power source and light fixture with the Command Light Configurator.

Specifications

AC	Lighting	Power Requirements	Output per light (lumens)	Total Output (lumens)	Dimensions (Nested)	Dimensions (Upright)	Weight
	FireTech Helios 60W	115V or 230V AC 660W	14,000	84,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 8.7cm)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	FRC Spectra 220W	115V or 230V AC 1,620W	20,000	120,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 8.7cm)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	FRC Spectra Max 335W	115V or 230V AC 2,310W	28,000	168,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 8.7cm)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	Whelen Pioneer Plus PFP2 150W	115V or 230V AC 1,200W	20,442	122,652	12"h x 47"w x 34"d (30.5cm x 1.2m x 8.7cm)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	Whelen Pioneer Plus PSP1 75W	115V or 230V AC 750W	8,517	51,102	12"h x 74"w x 23"d (30.5cm x 1.9m x 58.5cm)	87.5"h x 52"w x 23"d (2.2m x 1.3m x 58.5cm)	165 lbs (75 kg)

DC	Lighting	Power Requirements	Output per light (lumens)	Total Output (lumens)	Dimensions (Nested)	Dimensions (Upright)	Weight
	FireTech Helios 60W	12V DC – 80 amps 960W	14,000	84,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 8.7cm)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	Akron Revel SL 110W	12V DC – 80 amps 960W	14,000	84,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 8.7cm)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	Whelen Pioneer Plus PCH1 75W	12V DC – 63 amps 750W	10,130	60,780	14"h x 74"w x 23"d (35.5cm x 1.9m x 58.5cm)	87.5"h x 52"w x 23"d (2.2m x 1.3m x 58.5cm)	165 lbs (75 kg)

Available Options: Backlight, Strobe, Camera, Controls, Colour

AC	Lighting	Power Requirements	Output per light (lumens)	Total Output (lumens)	Dimensions (Nested)	Dimensions (Upright)	Weight
	FRC Focus 750W	115V or 230V AC 4,800W	19,600	117,600	13"h x 47"w x 25"d (33cm x 1.2m x 63.5cm)	87.5"h x 52"w x 25"d (2.2m x 1.3m x 63.5cm)	165 lbs (75 kg)
	Lumenform 500W	115 or 230V AC 3,300W	11,100	66,600	12"h x 47"w x 23"d (30.5cm x 1.2m x 58.5cm)	87.5"h x 52"w x 23"d (2.2m x 1.3m x 58.5cm)	165 lbs (75 kg)

Available Options: Backlight, Strobe, Camera, Controls, Colour

AC	Lighting	Power Requirements	Output per light (lumens)	Total Output (lumens)	Dimensions (Nested)	Dimensions (Upright)	Weight
	FRC Spectra Max 335W	115V or 230V AC 2,310W	28,000	112,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 86.5m)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)

DC	Lighting	Power Requirements	Output per light (lumens)	Total Output (lumens)	Dimensions (Nested)	Dimensions (Upright)	Weight
	FRC Spectra 220W	12V DC - 98 amps 1,180W	20,000	80,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 86.5m)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	FRC Spectra Max 230W	12V DC - 100 amps 1,220W	28,000	112,000	12"h x 47"w x 34"d (30.5cm x 1.2m x 86.5m)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)
	Lightforce HTX LED/HID 150W	12V DC – 75 amps 900W	13,500	54,000	12"h x 47"w x 31"d (30.5cm x 1.2m x 78.5m)	87.5"h x 52"w x 31"d (2.2m x 1.3m x 78.5cm)	165 lbs (75 kg)
	Whelen Pioneer Plus PFH2 150W	12V DC - 75 amps 900W	20,261	81,044	12"h x 47"w x 34"d (30.5cm x 1.2m x 86.5m)	87.5"h x 52"w x 34"d (2.2m x 1.3m x 86.5cm)	165 lbs (75 kg)

Available Options: Backlight, Strobe, Camera, Controls, Colour

AC	Lighting	Power Requirements	Output per light (lumens)	Total Output (lumens)	Dimensions (Nested)	Dimensions (Upright)	Weight
	(2) FireTech – 270w (2) FireTech – 60w	115V AC - 960w	270w: 28,500 60w: 6,500	70,000	12"h x 53"w x 13"d (30.5cm x 1.3m x 33m)	87.5"h x 53"w x 13"d (2.2m x 1.35m x 33cm)	165 lbs (75 kg)

DC	Lighting	Power Requirements	Output per light (lumens)	Total Output (lumens)	Dimensions (Nested)	Dimensions (Upright)	Weight
	(2) FireTech – 270w (2) FireTech – 60w	12V DC - 960w	270w: 28,500 60w: 6,500	70,000	12"h x 53"w x 13"d (30.5cm x 1.3m x 33m)	87.5"h x 53"w x 13"d (2.2m x 1.35m x 33cm)	165 lbs (75 kg)

Available Options: Strobe, Camera, Controls, Colour

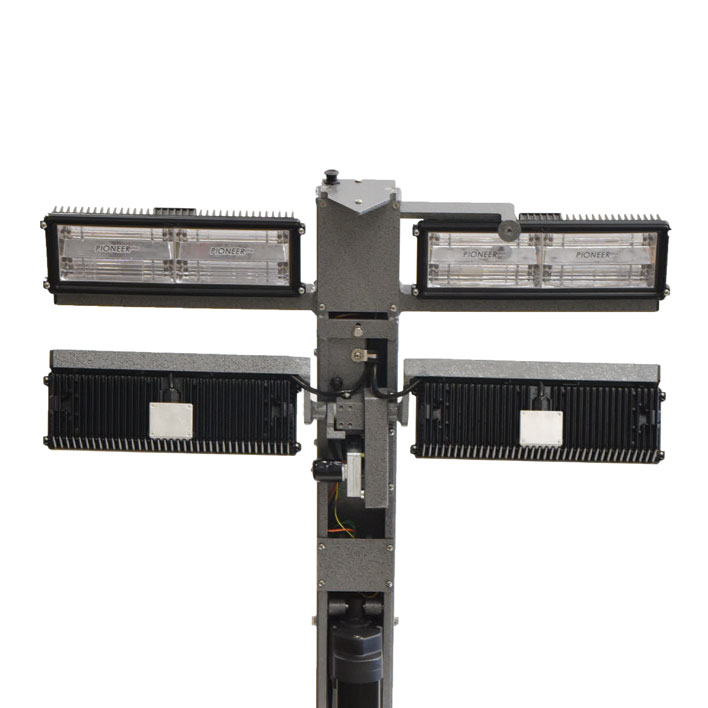

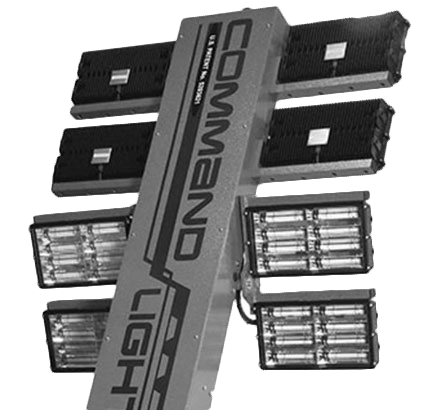

Backlight

The backlight option enables the bottom row of lamp heads to rotate 180 degrees, making it possible to light opposing scenes.

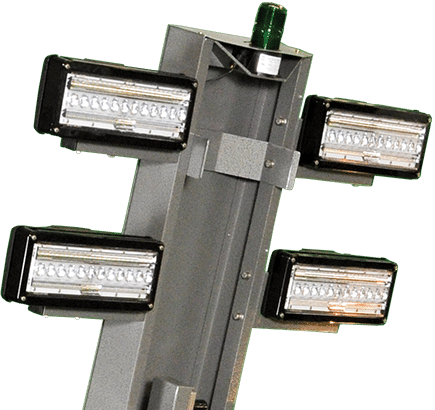

Top-Mounted Strobe

Alert oncoming traffic earlier with a strobe mounted on top of the light tower. Available in amber, blue, clear, green or red illumination.

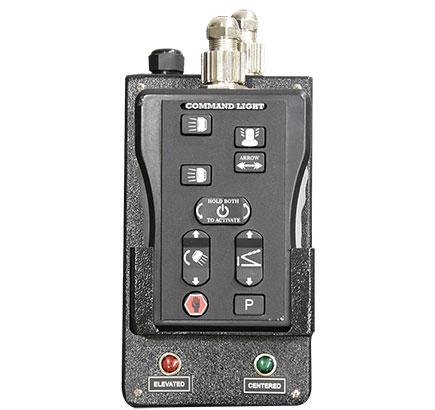

Control Options

Every Command Light is equipped with a Standard Controller with 15 ft. (4.5 m) umbilical cord. Add a wireless remote, panel-mounted controller or multiplex display capabilities.

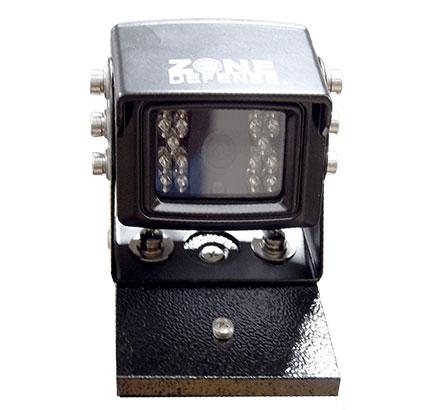

Top Mounted Camera

A top-mounted 360 vehicle camera provides additional views for apparatus operators, helping keep personnel safe on the fire ground. Choose from three different available camera systems.

Custom Tower Colours

Every Command Light is powder coated in standard gray, but departments can upgrade to powder-coated black or white. We can also color match your truck with wet paint, like red.
