Easily identify, locate and assist critical missions using the
innovative EXOLANDER© Spotlight and Payload Delivery System for the EVO
II. This advanced system includes:

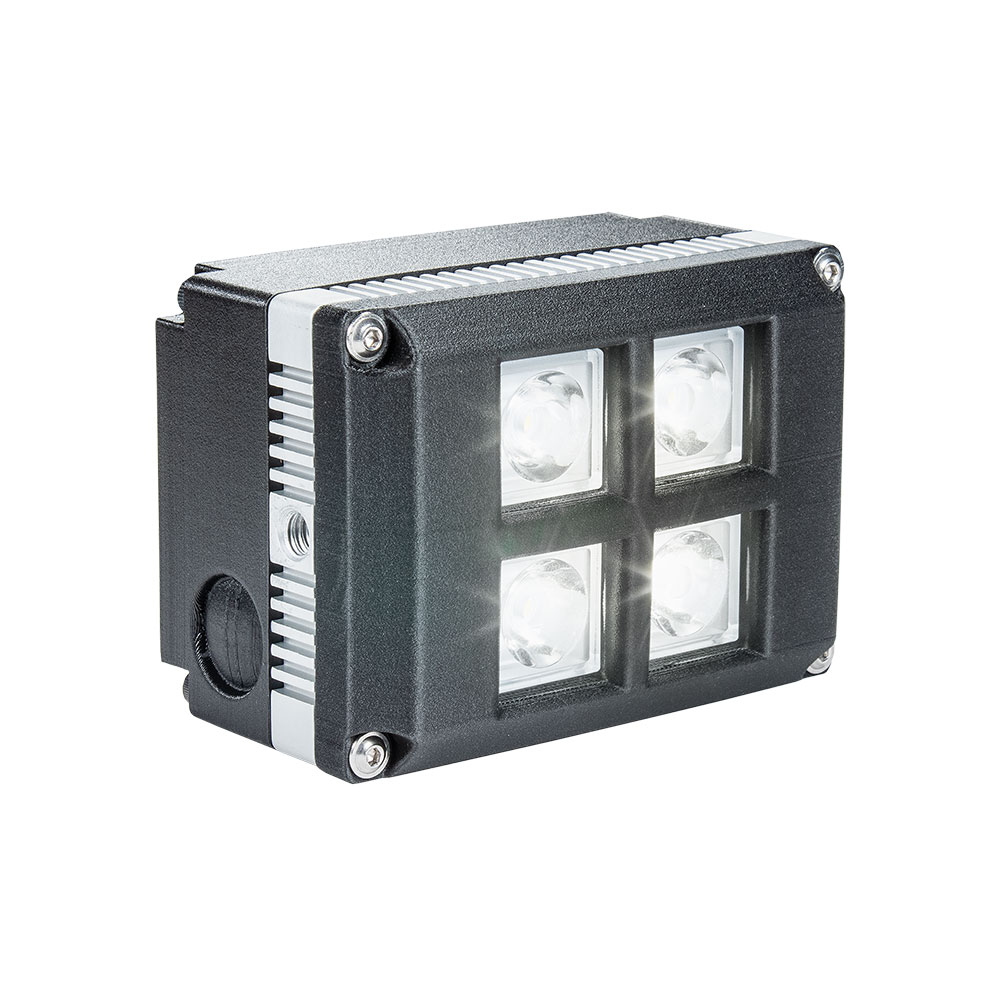

- D100 Spotlight: The D100 drone search/spotlight provides public safety users 2,300 lumens
of focused lighting with a 60’ (18.3 m) wide light at an altitude of
200’ (60.96 m) Designed for the Autel EVO II, the D100 weighs 346 grams,
has a 70 minute battery life, and is water resistant. The directed,
15-degree focused beam provides brilliant white light, designed for
illumination in areas otherwise challenged to light. The D100 may also
be angled or aimed straight down.

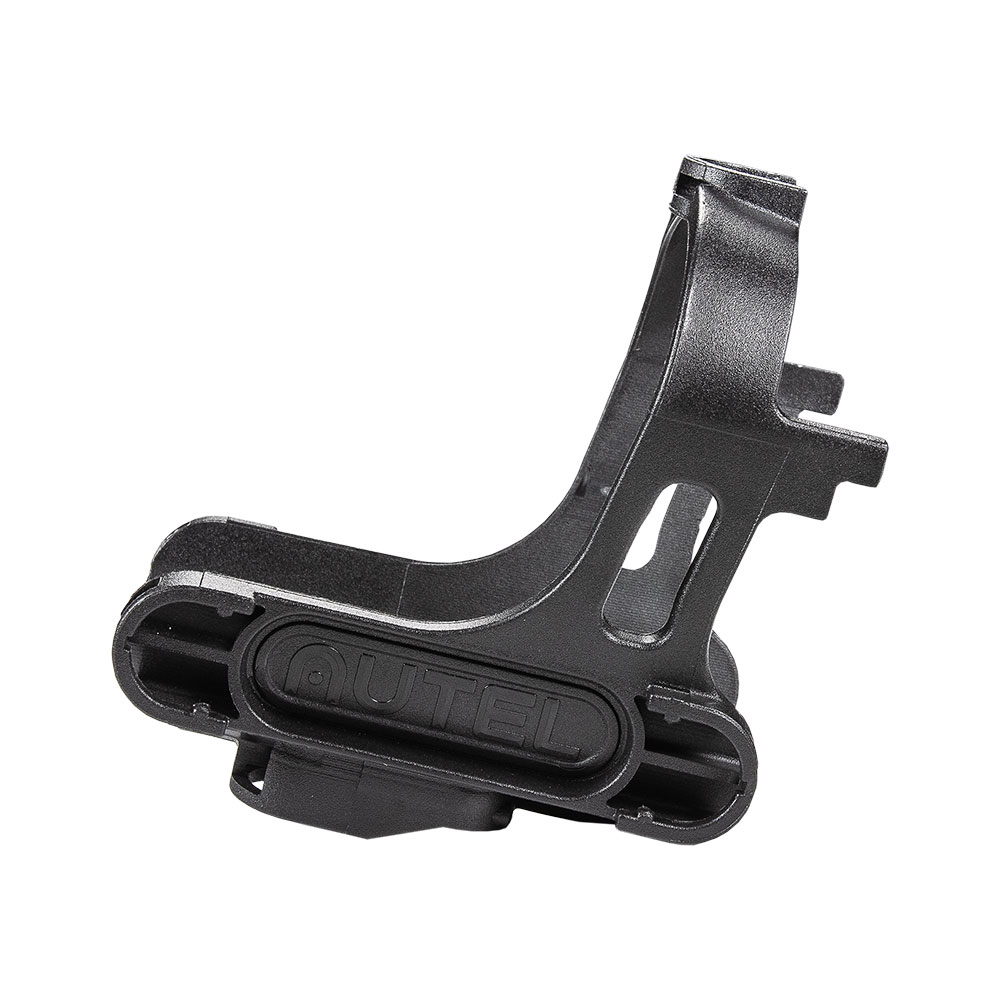

- EVO II Saddle: The saddle connects the EXOLANDER©
frame to the EVO II and can be used to hold (7) D10 or D3060 lights. D10
and D3060 are not included and must be purchased separately. These
lights serve as anti-collision lights for night flight regulation
compliance.

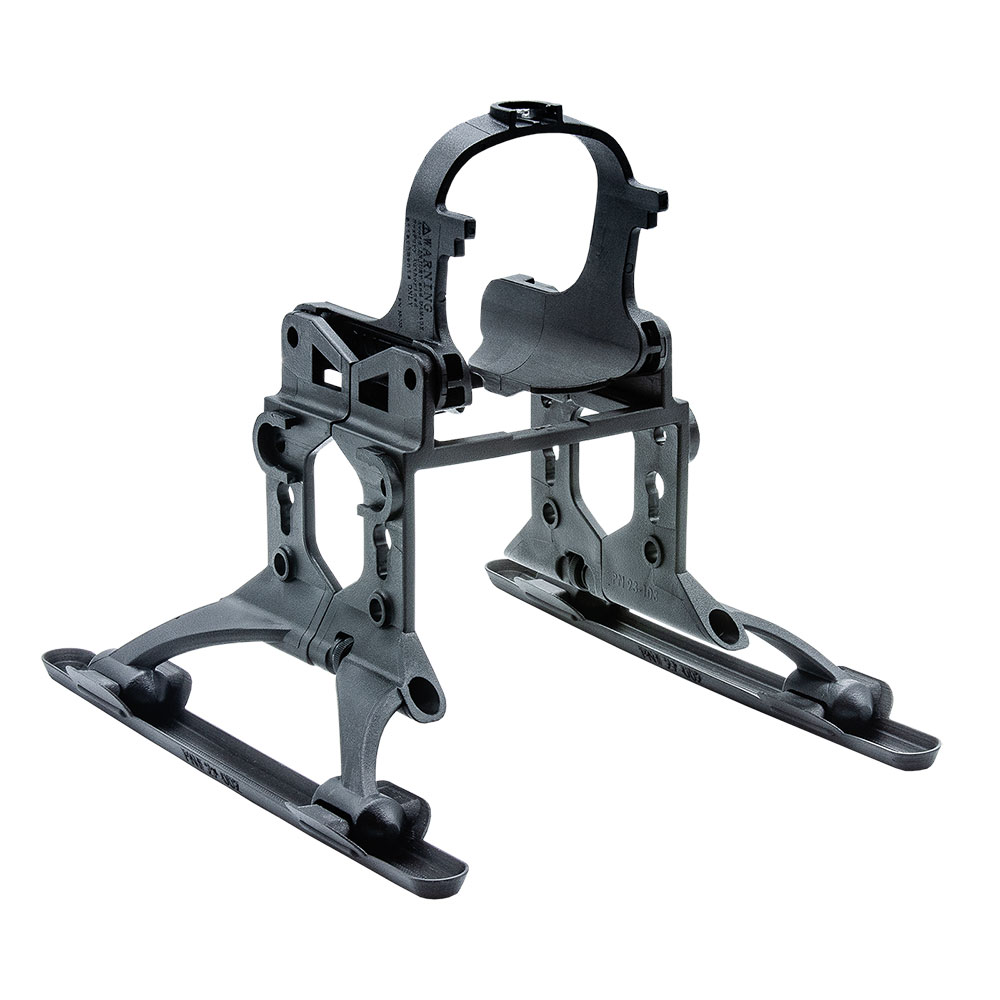

- EXOLANDER©: This apparatus securely supports the
D100 drone light for maintaining proper CG (Center of Gravity) on the
Autel EVO II. The EXOLANDER© has 10 hard points for various accessories,
and may be attached/removed from the Autel EVO II aircraft without
tools.

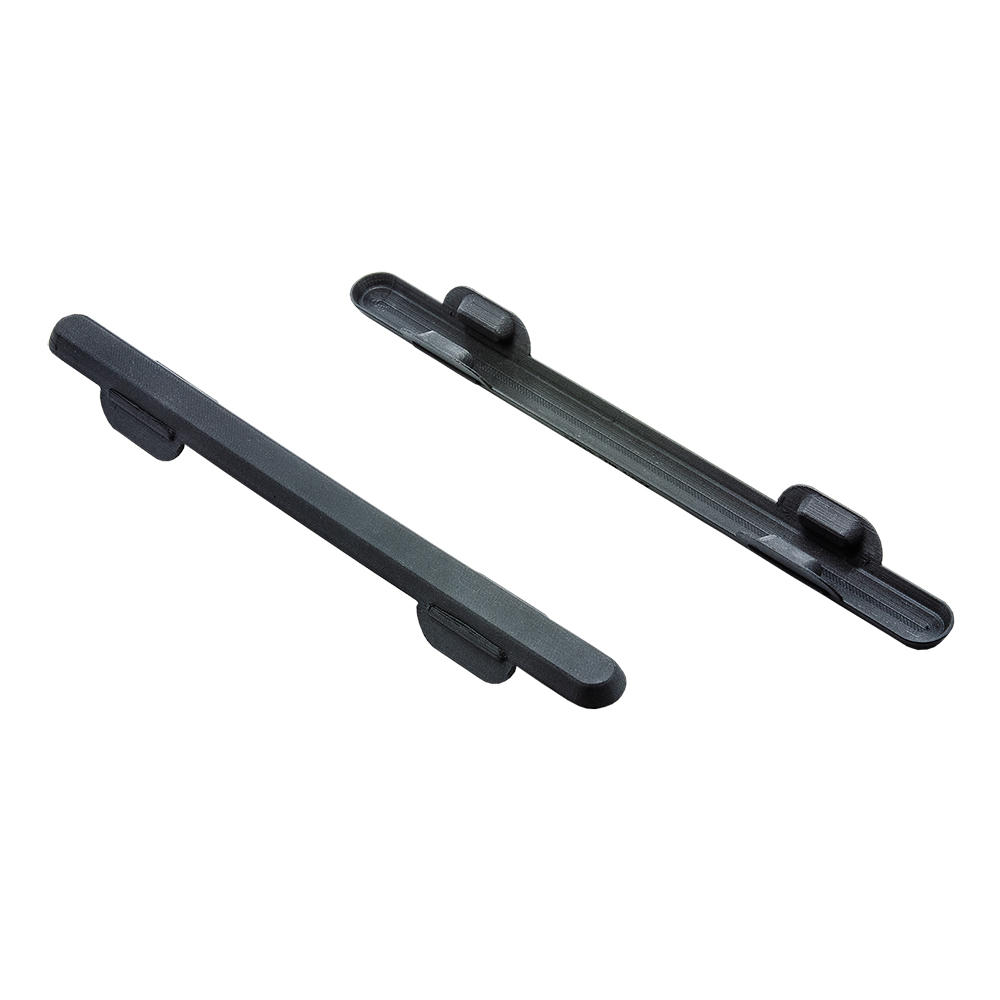

- Landing Skids: The landing skids allow the EVO II
to land on snow, mud, and uneven surfaces, protects the camera from
impact, and stabilizes the aircraft when landing.

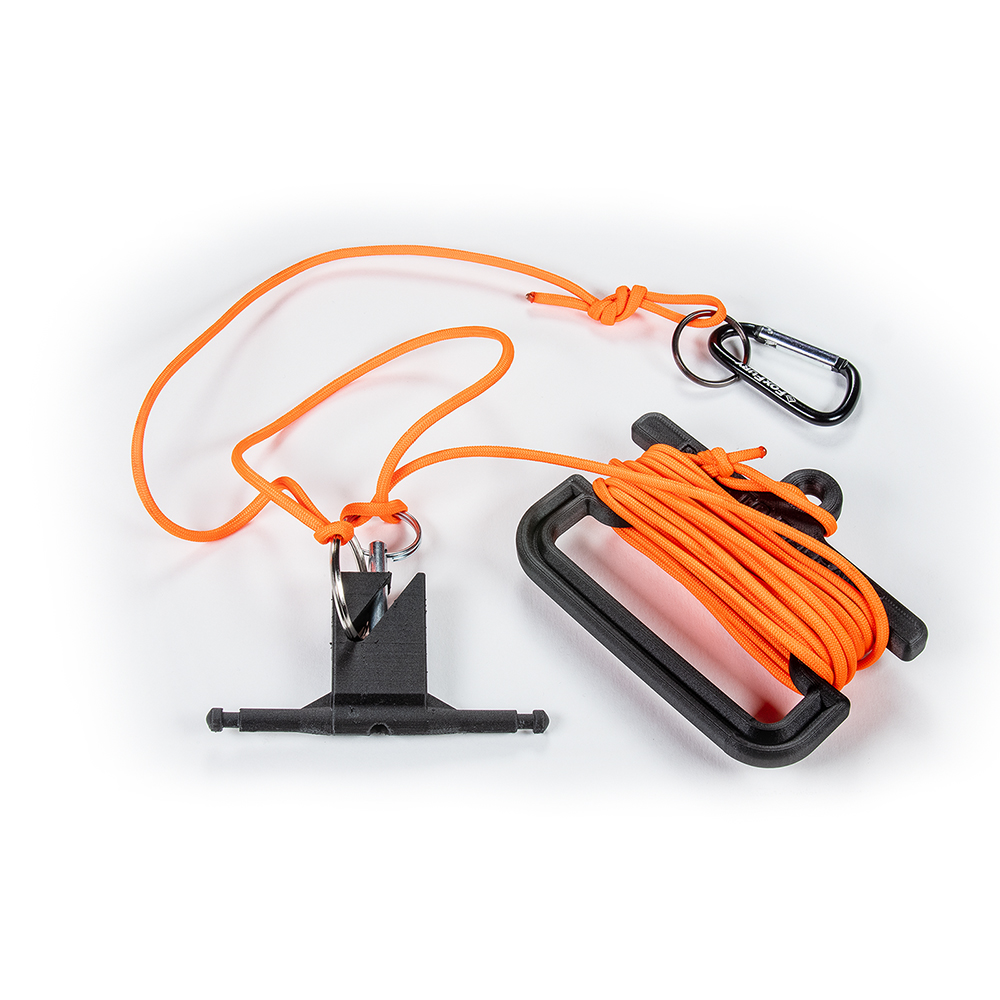

- Manual Payload Delivery System: This system
enables public safety users to drop radios, space blankets, water
bottle, first-aid kits, or other small assistive devices in situations
where rescuers cannot reach or clearly communicate with a victim. The
lightweight system is also designed to carry safety lines to stranded or
drowning swimmers, and has been tested pulling over 400’ of 550 cord to
a swimmer in the ocean. The Payload Delivery System is designed to work
with the Autel EVO II aircraft with mounting capabilities through the
EXOLANDER©.
Specifications
D100 SPOTLIGHT
- 2,300 lumens
- Area Illuminated: 30 ft (9.1 m) diameter spot at 100 ft (30.48 m), 60 ft (18.3 m) diameter spot at 200 ft (60.96 m)
- Beam Angle: 15-degree Focused Beam / Angled or Straight
- 70-140 minutes battery life
- (2) 18650 Lithium-Ion Batteries & XTAR Charger included
- 3.46" x 2.03" x 2.46" (88 x 51.5 x 62.5 mm)
- 8.92 oz (253.0 g), 12.23 oz (346.6 g) with provided 18650 batteries
- Modes: 2 (Continuous On and Turbo-Strobe)
- Fire Resistant, Meets Requirements of NFPA 1971-8.6 (2013)
- Nylon with Carbon Fiber Body, 6061 Aluminum Heatsink
- Impact Resistant:
9.8 ft (3 m) drop
- Operating Temperature: Min -20°C (-4°F), Max 149°C (300°F)
- 1/4 20 mounts
- One Year Warranty
EVO II SADDLE MOUNT
- 2.52" x 3.4" x 3.5" (64 x 86 x 89 mm)
- 1.0 oz (28.3 g)
- Fire Resistant, Meets requirements of NFPA 1971-8.6 (2013)
- Impact Resistant: 9.8 ft (3 m) drop
- Made of Nylon
- One Year Warranty
EXOLANDER©
-
6.7" x 6.5" x 4.7" (170 x 165 x 120 mm)
-
4.05 oz (114.7 g)
- Fire Resistant, Meets requirements of NFPA 1971-8.6 (2013)
- Impact Resistant: 9.8 ft (3 m) drop
-
4 (four) landing pods with individual shock absorption
- Made of Nylong
- One Year Warranty
LANDING SKIDS
- Set of two
- 8.66" x 0.96" x 0.6" (220 x 24.3 x 15 mm)
-
0.45 oz (12.8 g) each, 0.9 oz (25.6 g) total
- Fire Resistant, Meets requirements of NFPA 1971-8.6 (2013)
- Impact Resistant, 9.8 ft (3 m) drop
- Made of Nylon with Carbon Fiber
- Snap on attachment For drones to land on soft surface
- One Year Warranty
MANUAL PAYLOAD DELIVERY SYSTEM©
- Will hold up to 25 lbs (11.34 kg) payload (drone dependent; EVO II will
carry 2.6 lbs/1.2 kg), Only requires 2-4 lbs (0.9 -1.8 kg) of force to
release, Uses 550 Paracord, As an option, 400-500 ft. Paracord for beach
rescue can be used
- Includes: Payload Delivery Unit with Cross
Bar, Handle/ Cord Reel with 550 Paracord (20 ft), 1/4 x 1 1/2 QR Pin
with Ring, Key Ring, Carabiner with Ring, Payload Delivery Bag
- 6.92 oz (196.3 g) - full assembly, 3.56 oz (101 g) - without bag
- Made of Nylon with Carbon Fiber Payload Delivery Unit
- One Year Warranty
