KrakenExo Fire Hose

Description
Documents

Designed for aggressive fire fighting applications where durability coupled with lightweight, excellent low pressure kink resistance and superior water flow are critical factors.

Applications:

Aggressive interior attack hose
Rapid intervention team (RIT) hose
For stand pipe and high rise operations
Pre-connected cross-lay attack hose
Pre-connected front bumper attack hose
Potable water transfer hose (stenciled)

Features and Benefits:

Extremely kink resistant, even at low pressure

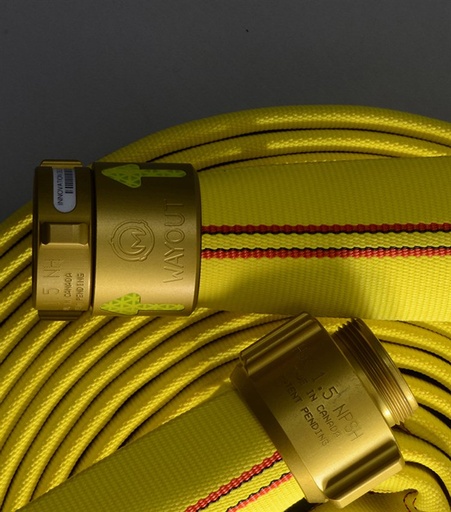

Standard with Gold Anodized thread with Mertex Wayout® couplings & identify feature
Features Two Year All Hazards Warranty
Unique Mertex® lining
Premium all synthetic double jacket
400 PSIG (2755 kPa) service pressure
Standard with Permatek HP™ treatment against abrasion, moisture pick up and mildew
Burst safety factor of 3.75 times the service pressure for greater security
Remains flexible to -65º F (-55º C)
Exceeds NFPA 1961, UL and FM performance requirements

Additional options upon request:

Available in other sizes, lengths and threads including Storz
Available in other colors: White, Beige, Forest Green, Orange, Red, Blue, Green, Yellow, Purple
Other stenciling requests

Hose Size	Service Pressure	Proof Pressure	Burst Pressure	Coil Diameter/50'	Weight (50' Uncpld)
1.5" (38mm)	400 psi	800 psi	1,500 psi	16.5" (42cm)	12.5 lbs. (5.7kg)
1.75" (44mm)	400 psi	800 psi	1,500 psi	17" (43cm)	14.8 lbs. (6.7kg)
2" (50mm)	400 psi	800 psi	1,500 psi	17" (43cm)	16.3 lbs. (7.4kg)
2.5" (65mm)	400 psi	800 psi	1,500 psi	19" (48cm)	21.5 lbs. (9.8kg)
3" (77mm)	400 psi	800 psi	1,500 psi	21" (53cm)	26.5lbs (12kg)

Specifications for KrakenExo Fire Hose

Product Colour	Orange or Green or White or Yellow or Red or Blue or Other Color
Thread Type	38mm (1.5") NPSH or 44mm (1.75") NPSH or 44mm (1.75") Storz or 65mm (2.5") BAT or 65mm (2.5") WCT or 65mm (2.5") Storz or 65mm (2.5") Custom (Specify Thread) or 77mm (3") BAT
Product Length	50ft or 100ft
